MS-Lok Metal Roofing Panel




MS-LOK Metal Roofing Panel Overview

  • Gauge: 1.5″ MS available in 24 Gauge | 2″ MS available in .032 Alum. or 24 Gauge

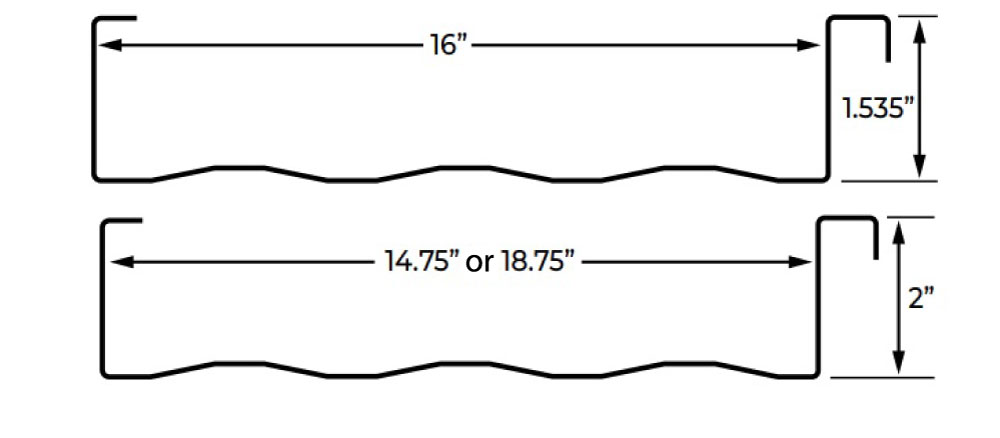

  • Panel Coverage: 1.5″ MS has 16” coverage | 2″ MS and .032 Alum. has 14.75” coverage | 24 Gauge has 18.75” coverage
  • Rib Height: 1.5” & 2” available
  • Minimum Slope: ¼:12
  • Substrate: 1.5″ MS has Steel substrate | 2″ MS can have either Aluminum or Steel substrate
  • Finish: Max Defender, Core Defender, Coastal Defender and Acrylic coated Galvalume® AZ55
  • Warranty: 35-year limited paint warranty Max, 40-year limited paint warranty Core, 25-year Mill Finish warranty, 25-Year
  • Aluminum No Set Back Warranty
  • Available in: Flat, Ribbed, or Striated
  • Minimum Slope shall comply with Florida Building Code, including Sections 1507.4.2, greater than .25/12 with recommending sealant under 2/12
